In-Line Hydro

In-Line Series (ILT)
6-24” Pipe Sizes
50-570 Feet Net Head
500-30,000 GPM Flow Rates

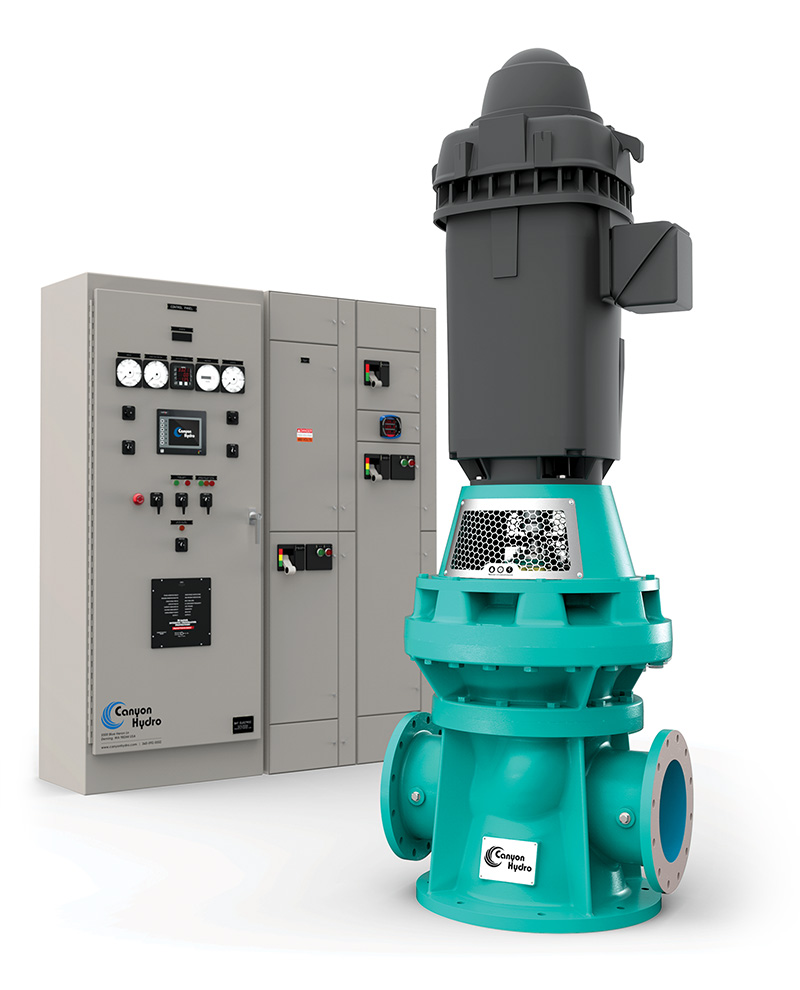

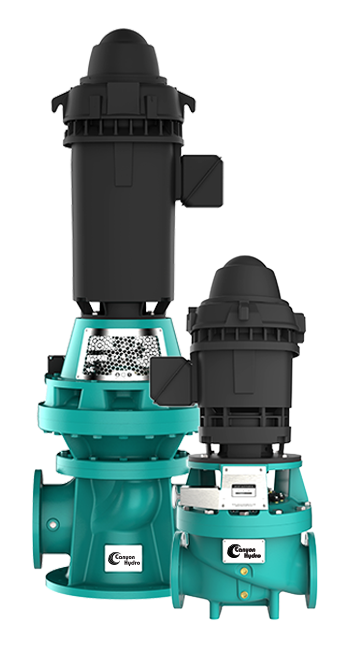

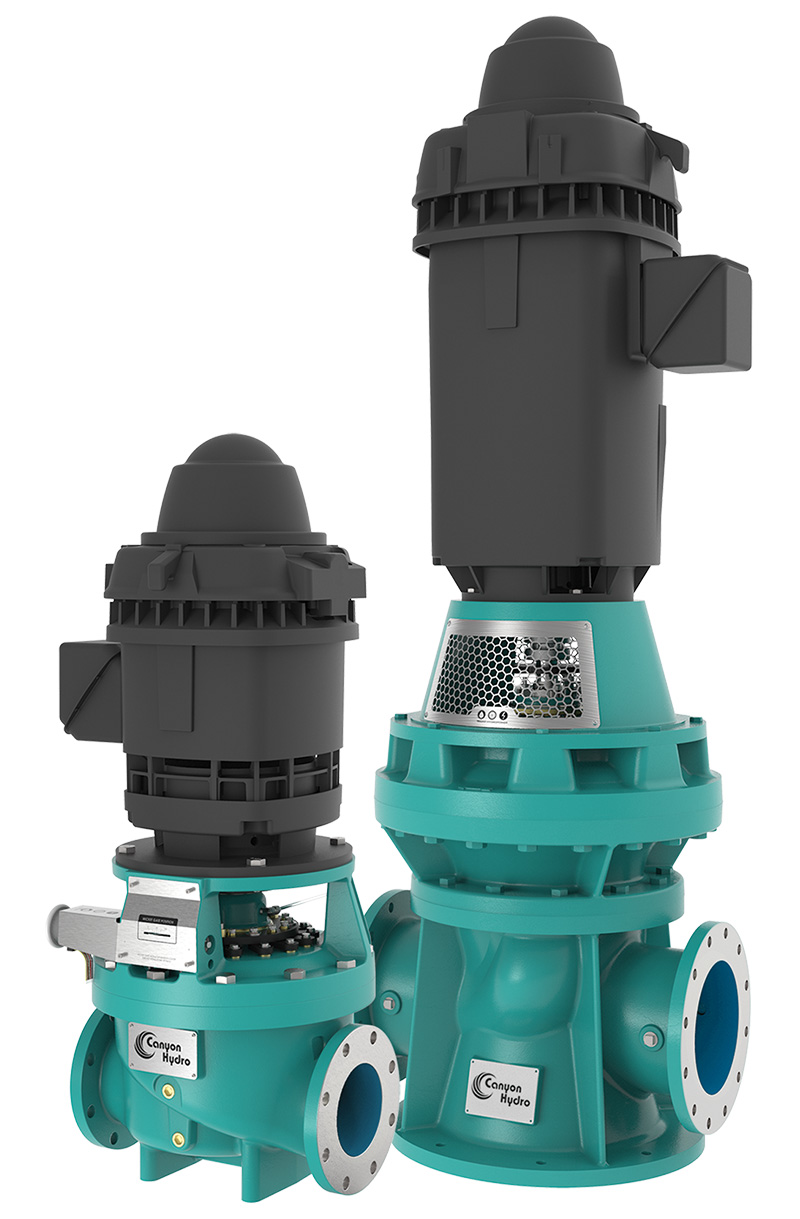

Canyon’s In-Line Turbines are a series of compact, highly efficient hydro power generation units. These turbines are site specific for maximum efficiency but share a number of common parts for competitive pricing and quick lead times. Designed specifically for conduit power recovery, the ILTs are available for standard pipe sizes from 6 to 24 inches.

Manufactured and assembled in the USA
USA Patent No. 10,584,673

Application Support / Purchasing Information

Generate Power
from New and Existing
Water Delivery Networks

The In-Line Hydro turbines are specifically optimized for conduit energy recovery applications.

Adjustable wicket gates maintain efficiency over a wide range or flows and heads to maximize power recovery in variable conditions.

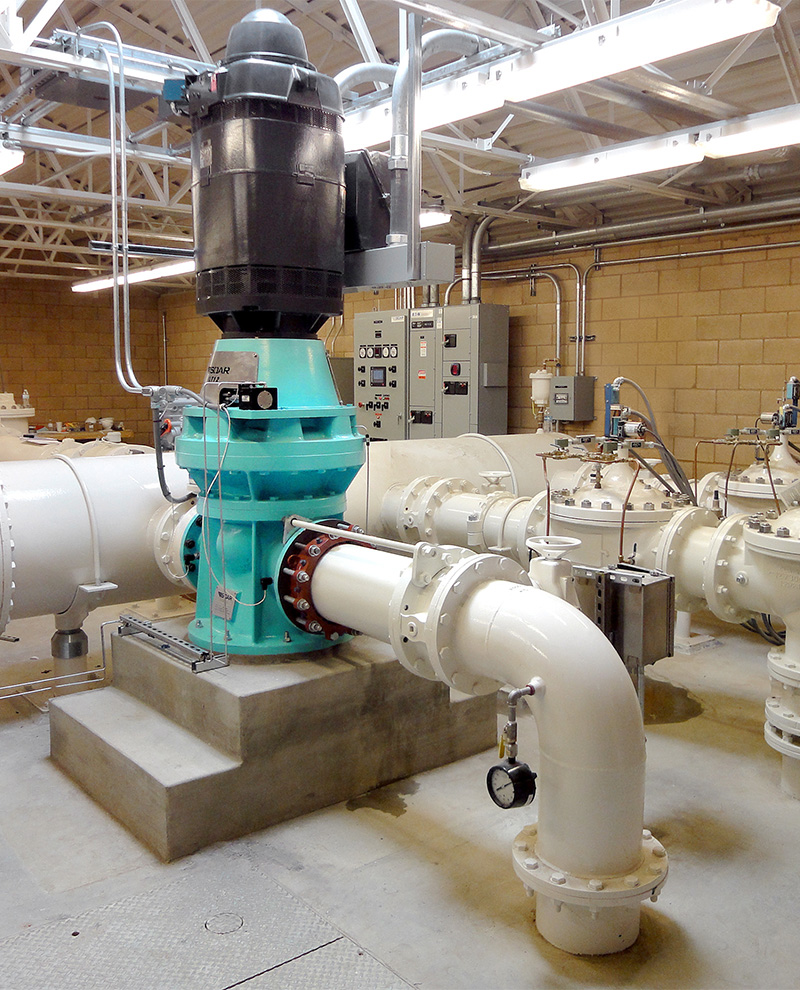

With simplified installation and an extremely compact footprint the civil installation costs are significantly reduced over conventional turbines.

In-Line Turbine
Power Generation Systems

Canyon Hydro’s In-Line Turbines are available as complete water-to-wire hydroelectric generation equipment packages.

With over 45 years of experience engineering and building hydroelectric generation systems, Canyon has the expertise to ensure your system meets or exceeds the rigid utility specifications of public and independent power producers.

In-Line Turbine Features

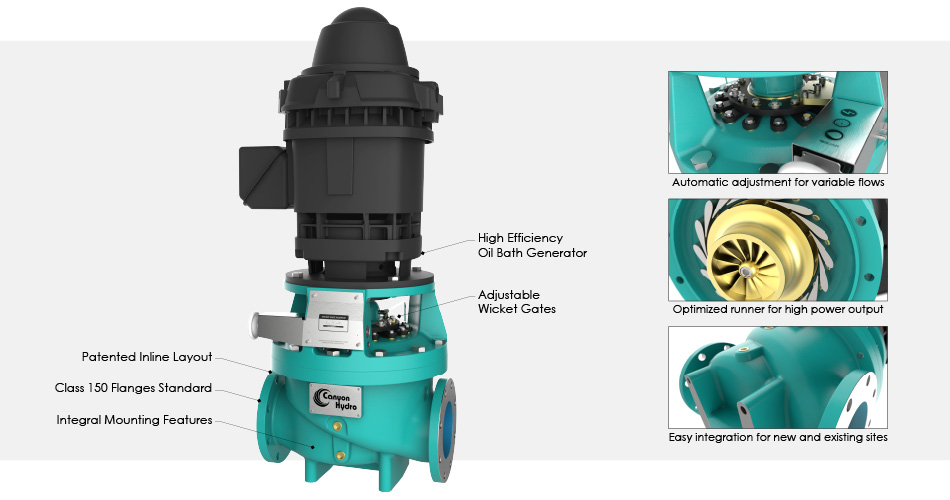

The In-Line Turbine is a traditional Francis turbine reconfigured to have in line flanges for ease of installation. Adjustable wicket gates manipulate the flow rate and pressure differential across the turbine giving precise control and ensuring optimal efficiency.

When properly implemented in a clean water applications Canyon Turbines have an expected life cycle of 30+ years with minimal routine maintenance. When rebuild is necessary all wear components are completely servicable.

Selecting the Best
Hydroelectric Turbine for
Your Application

In-Line Turbines are highly site-specific and many variables are considered when selecting the appropriate model. Canyon works closely with each customer to understand their site needs and supply the correct sized turbine.
