Sutton

Location: Vancouver Island, Canada

Rated Output: 5,400 kW

Head: 1,079 feet (329 meters)

Turbine Design: Twin nozzle Pelton

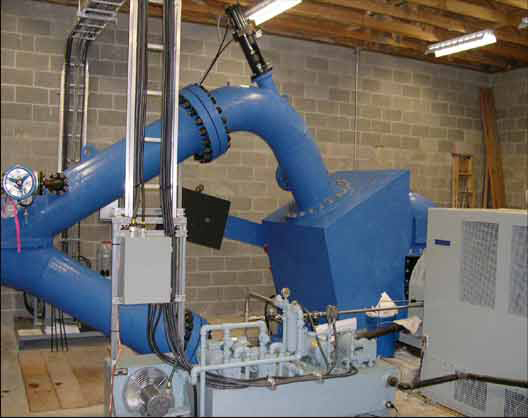

Completed Canyon Hydro turbine system inside the Sutton powerhouse.

Click any photo to enlarge

Sutton turbine system during fabrication at Canyon Hydro

Preliminary fitting of turbine intake splitter and housing at Canyon Hydro.

Sutton Pelton runner during fabrication at Canyon Hydro

Inspection of Canyon Hydro Pelton runner during the polishing phase.

Pelton runner fabricated by Canyon Hydro

Final inspection of the completed Pelton runner before packing for shipment.

Loading turbine system on truck at Canyon Hydro

Loading the components for the Sutton hydroelectric system on a flatbed for shipment.

Canyon Hydro turbine system at Sutton Powerhouse

Completed Canyon Hydro turbine system inside the Sutton powerhouse.

External view of Sutton powerhouse

External view of the Sutton powerhoue and substation.

Intake for Sutton hydroelectric project

Diversion and intake system for the Sutton Hydro project.
