MICRO-HYDRO SYSTEMS LESS THAN 100KW

Micro-Hydro Projects Using Canyon Hydro Products

First-Time Hydropower Project?

Learn basic design principles in the
Guide to Hydropower

Micro-Hydro Project Gallery

Examples of Canyon Hydro systems in operation

See larger systems in the Utility/IPP Project Gallery

Click on any project photo for a larger picture.

Canyon Hydro hydroelectric system in Costa Rica

Location: Costa Rica

Rated Output: 14kW

Turbine Type: Twin-Nozzle Pelton

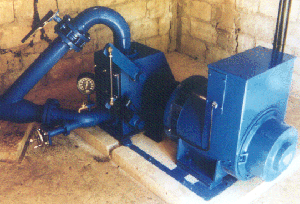

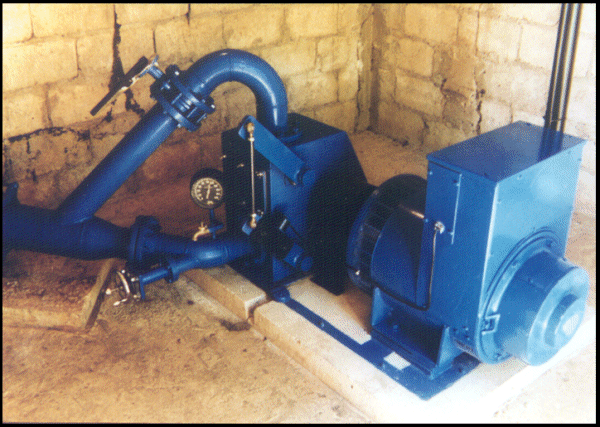

This dual-nozzle Canyon 1051-2 Pelton turbine powers a 14KW synchronous generator in Costa Rica.  A variable needle nozzle makes it possible to adjust for changes in stream Flow without shutting down the turbine.  The turbine intake was custom designed to fit in an existing powerhouse.
Larger picture

Canyon Hydro Hydroelectric Project

Location: Northern California

Rated Output: 5kW

Turbine Type: Twin-Nozzle Pelton

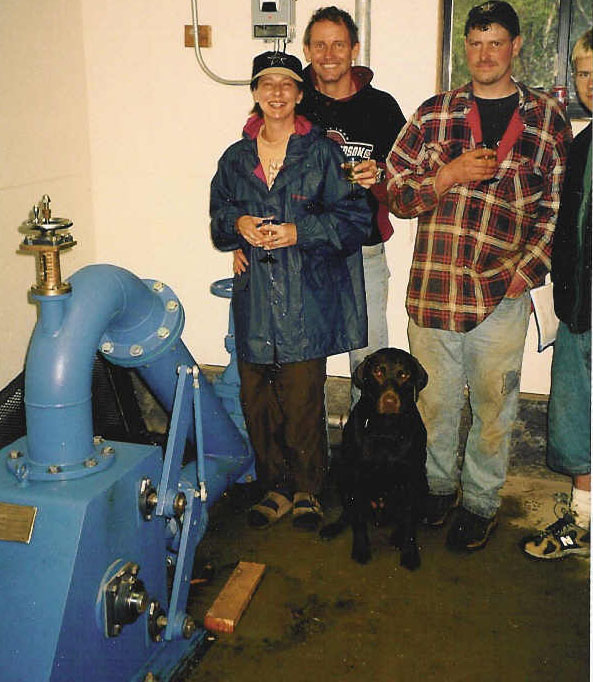

Proud owner with portions of his crew, toasting the successful startup of his 5KW hydroelectric system. This installation serves a home located in a remote area of northern California.

Larger picture

Canyon Hydro Hydroelectric System

Location: Panama

Rated Output: 40kW

Turbine Type: Crossflow

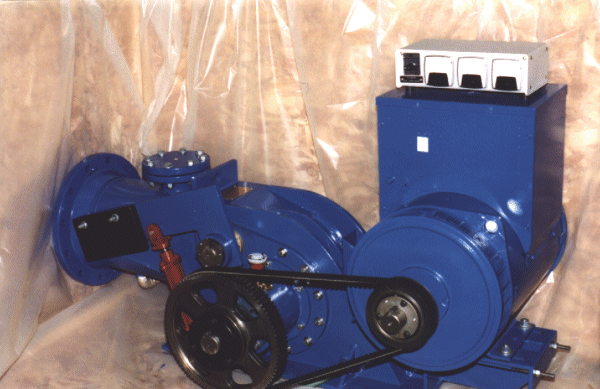

This Canyon variable flow Crossflow turbine uses belt-drive coupling to a Marathon 40 KW synchronous generator. It is currently supplying power to a coffee processing plant in the Republic of Panama.

Larger Picture

Canyon Hydro Hydroelectric System

Location: Papua New Guinea

Rated Output: 100kW

Turbine Type: Crossflow

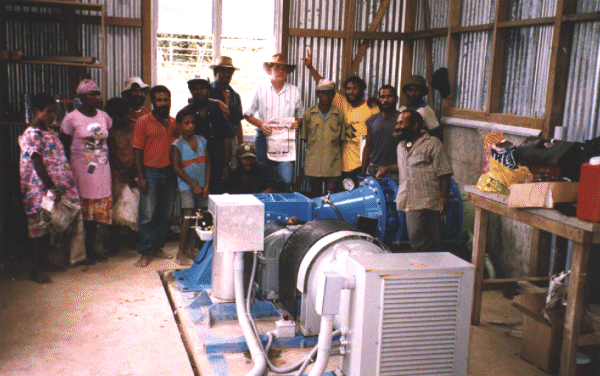

Canyon turbines and systems often supply power to remote communities.  This 100 KW Canyon Crossflow turbine supplies power to a mountain village and school in Papua New Guinea.

Larger Picture

Canyon Hydro Hydroelectric System

Location: Western Oregon, USA

Rated Output: 30kW

Turbine Design: Dual Twin-Nozzle Peltons

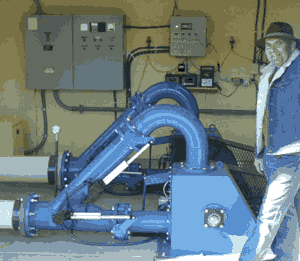

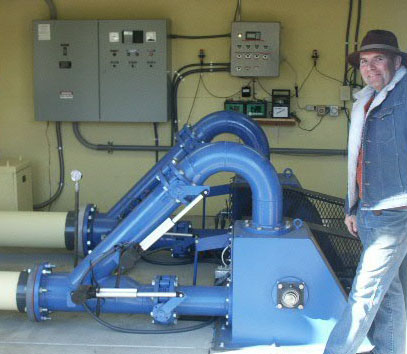

Lucien Gunderman stands next to his four-jet, twin turbine system.  Located in the Willamette valley in Western Oregon, both turbines run one 30KW induction generator, which is electrically interfaced with the utility grid.

Larger Picture

Canyon Hydro Hydroelectric System

Location: Wyoming, USA

Rated Output: 10kW

Turbine Design: Twin-Nozzle Pelton

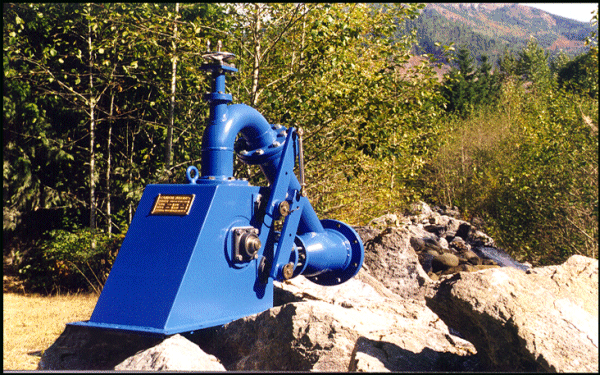

This Canyon 6010-2 Pelton turbine is installed at a Wyoming ranch and generates 10KW.  It is a combination system, capable of stand-alone and grid-interfaced operation.

Larger Picture

Canyon Hydro Hydroelectric System

Location: Colorado, USA

Rated Output: 18kW

Turbine Design: Twin-Nozzle Pelton

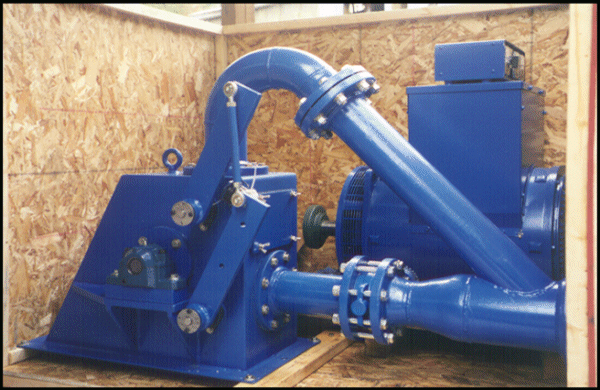

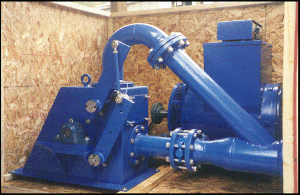

A dual-nozzle Canyon 751-2 Pelton turbine and 18KW Marathon generator ready to ship to Colorado.

Larger Picture

Canyon Hydro Hydroelectric System

Location: Washington State, USA

Rated Output: 11kW

Turbine Design: Single-Nozzle Pelton

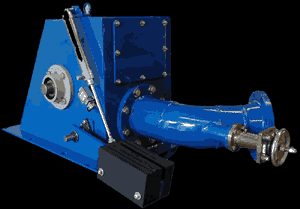

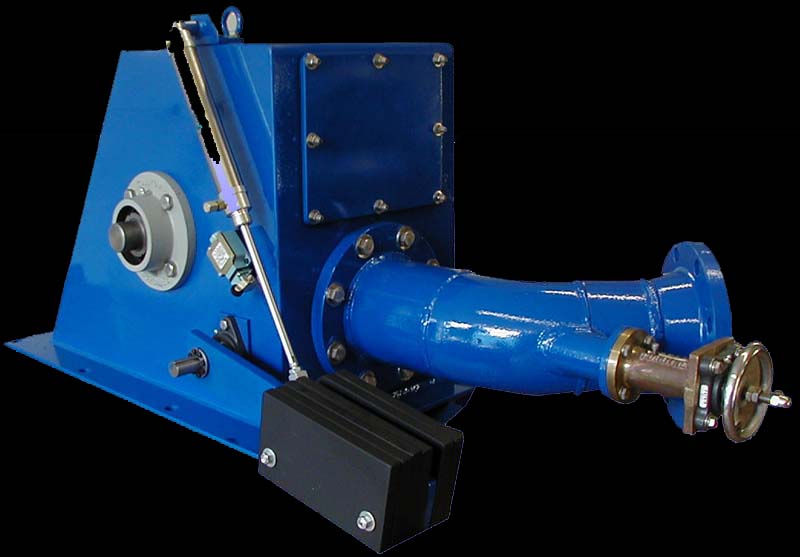

This 9513 single nozzle turbine is used in a grid-parallel configuration with a utility in Washington State, and produces 11KW under 165 feet of head.  It was fitted with a custom deflector actuator to allow automatic restart after utility outages.  The manually adjusted needle nozzle allows the turbine to operate efficiently with varying flow rates.

Larger Picture
